Key Applications:High Performance Computing, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI
Key Features :High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs NVIDIA® NVLink® high speed interconnect between both GH200 Super Chips; NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU); NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s; Up to 1248GB of coherent memory (system as a whole), including 960GB LPDDR5X and 288GB of HBM3e for LLM applications; 4x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards; 6 Heavy Duty Fans with Optional Speed Control

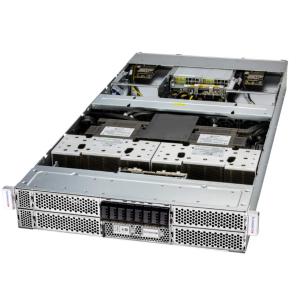

| Form | Supermicro ARS-221GL-NHIR 2U GPU Server |
| Processors | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| GPU | Max GPU Count: 2 onboard GPUs Supported GPU: NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) CPU-GPU Interconnect: NVLink®-C2C GPU-GPU Interconnect: NVIDIA® NVLink® |
| System Memory | Slot Count: Onboard Memory Max Memory: Up to 960GB ECC LPDDR5X Additional GPU Memory: Up to 288GB ECC HBM3e |
| Drive Bays Configuration | Default: Total 3 bays 3 front fixed E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) |
| Expansion slots | Default 3 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x4 (in x16) FHFL slot |
| Power Supply | 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies |
| Dimensions and Weight | Weight: Gross Weight: 103 lbs (46.8 kg) Net Weight: 88 lbs (40 kg) Available Color: Silver |
